tiledmap地图相关坐标转换？

hacker

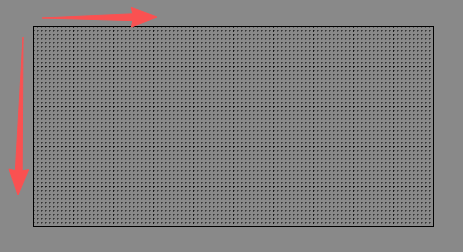

正常的地图

起始点：左上角
宽度：地图上方x轴
高度：地图左边y轴
这是一个100*50的地图

通过坐标获取地图格子

    /**
     * 通过坐标获取地图格子
     * @param pos
     * @param mapId
     * @returns
     */
    getGridByPos(pos: Vec3, mapId: string) {
        let tiledMap = this._tileMapData.get(mapId);
        if (!tiledMap) {
            console.error("can not find tiledMap by mapId:", mapId);
            return null;
        }
        let _mapWidth = tiledMap.getMapSize().width;
        let _mapHeight = tiledMap.getMapSize().height;
        let _tileWidth = tiledMap.getTileSize().width;
        let _tileHeight = tiledMap.getTileSize().height;
        let gridX = ~~((pos.x + _mapWidth * _tileWidth / 2) / _tileWidth);
        let gridY = ~~((_mapHeight * _tileHeight / 2 - pos.y) / _tileHeight);
        return [gridX, gridY];
    }

通过地图格子获取坐标

    /**
 * 通过地图格子获取坐标
 * @param gridX
 * @param gridY
 * @param mapId
 * @returns
 */
    getPosByGrid(gridX: number, gridY: number, mapId: string) {
        let tiledMap = this._tileMapData.get(mapId);
        if (!tiledMap) {
            console.error("can not find tiledMap by mapId:", mapId);
            return null;
        }
        let _mapWidth = tiledMap.getMapSize().width;
        let _mapHeight = tiledMap.getMapSize().height;
        let _tileWidth = tiledMap.getTileSize().width;
        let _tileHeight = tiledMap.getTileSize().height;
        let pos = new Vec3(gridX * _tileWidth, gridY * _tileHeight, 0);
        //原点为中心时，坐标系为左上角，需要转换为中心点坐标系
        let realPosx = pos.x - _mapWidth * _tileWidth / 2 + _tileWidth / 2;
        let realPosy = _mapHeight * _tileHeight / 2 - pos.y - _tileHeight / 2;
        return new Vec3(realPosx, realPosy, 0);
    }

获取地图的宽高

    /**
     * 获取地图的宽高
     * @param map
     * @returns
     */
    getTileMapSize(map: TiledMap) {
        let tiledMapWidth = map.getMapSize().width * map.getTileSize().width;
        let tiledMapHeight = map.getMapSize().height * map.getTileSize().height;
        return [tiledMapWidth, tiledMapHeight];
    }

设置多边形对象障碍物

**
     *  设置多边形对象障碍物
     */
    setPolyObjtacles() {
        let obstacle = this.tiledMap.getObjectGroup("obstacle");
        let _mapWidth = this.tiledMap.getMapSize().width;
        let _mapHeight = this.tiledMap.getMapSize().height;
        let _tileWidth = this.tiledMap.getTileSize().width;
        let _tileHeight = this.tiledMap.getTileSize().height;
        if (obstacle) {
            let objs = obstacle.getObjects();
            for (let i = 0; i < objs.length; i++) {
                //存在多个障碍对象
                let polyArr: Array<Vec2> = [];
                let obj = objs[i];
                let points = obj.points;
                let offset = obj.offset;
                for (let j = 0; j < points.length; j++) {
                    let point = points[j];
                    let pos = new Vec2(point.x, point.y);
                    let newPosx = pos.x - _mapWidth * _tileWidth / 2 + offset.x;
                    let newPosy = _mapHeight * _tileHeight / 2 + pos.y - offset.y;
                    polyArr.push(new Vec2(newPosx, newPosy));
                }
                //绘制多边形障碍区域
                // this.debugPolygonDraw(polyArr);
                //创建多边形障碍
                this.createPolygonObstacle(polyArr);
            };
        }
    }

    /**
     * 设置地图图块属性障碍
     */
    setObjtacles() {
        let land = this.tiledMap.getLayer("land");
        let _mapWidth = this.tiledMap.getMapSize().width;
        let _mapHeight = this.tiledMap.getMapSize().height;
        let _tileWidth = this.tiledMap.getTileSize().width;
        let _tileHeight = this.tiledMap.getTileSize().height;
        for (let i = 0; i < _mapWidth; i++) {
            for (let j = 0; j < _mapHeight; j++) {
                let tiled = land.getTileGIDAt(i, j);
                if (tiled !== 0) {
                    let pro = this.tiledMap.getPropertiesForGID(tiled);
                    if (pro && pro.hasOwnProperty('wall')) {
                        //生成刚体
                        let pos = new Vec3(i * _tileWidth, j * _tileHeight, 0);
                        let realPosx = pos.x - _mapWidth * _tileWidth / 2;
                        let realPosy = _mapHeight * _tileHeight / 2 - pos.y;
                        let newPosx = realPosx + _tileWidth / 2;
                        let newPosy = realPosy - _tileHeight / 2;
                        this.createRectObstacle(new Vec3(newPosx, newPosy, 0), _tileWidth, _tileHeight);
                    }
                }
            }
        }
    }

多边形的对象点转换

 let obstacle = this.tiledMap.getObjectGroup("obstacle");
        let _mapWidth = this.tiledMap.getMapSize().width;
        let _mapHeight = this.tiledMap.getMapSize().height;
        let _tileWidth = this.tiledMap.getTileSize().width;
        let _tileHeight = this.tiledMap.getTileSize().height;
        if (obstacle) {
            let objs = obstacle.getObjects();
            for (let i = 0; i < objs.length; i++) {
                //存在多个障碍对象
                let polyArr: Array<Vec2> = [];
                let obj = objs[i];
                let points = obj.points;
                let offset = obj.offset;
                for (let j = 0; j < points.length; j++) {
                    let point = points[j];
                    let pos = new Vec2(point.x, point.y);
                    let newPosx = pos.x - _mapWidth * _tileWidth / 2 + offset.x;
                    let newPosy = _mapHeight * _tileHeight / 2 + pos.y - offset.y;
                    polyArr.push(new Vec2(newPosx, newPosy));
                }
                //绘制多边形障碍区域
                // this.debugPolygonDraw(polyArr);
                //创建多边形障碍
                this.createPolygonObstacle(polyArr);
            };
        }

矩形对象的点转换

let objGroup = this.tiledMap.getObjectGroup("door");
        let objs = objGroup.getObjects();
        let [tiledMapWidth, tiledMapHeight] = TiledMapData.instance.getTileMapSize(this.tiledMap);
        let enterDoor: Array<Rect> = [];
        let outDoor: Array<Rect> = [];
        for (let i = 0; i < objs.length; i++) {
            //有多个门
            let obj = objs[i];
            let offset = obj.offset;
            let realPosx = offset.x - tiledMapWidth / 2;
            let realPosy = tiledMapHeight / 2 - offset.y;
            // this.debugRectDraw(new Vec3(realPosx, realPosy - obj.height, 0), obj.width, obj.height);
            //添加门口
            if (obj.name === "enter") {
                enterDoor.push(new Rect(realPosx, realPosy - obj.height, obj.width, obj.height));
            }
            if (obj.name === "out") {
                outDoor.push(new Rect(realPosx, realPosy - obj.height, obj.width, obj.height));
            }
        }

点对象的坐标转换

/**
     * 设置怪物
     */
    setMonsterBornPoint() {
        let [tiledMapWidth, tiledMapHeight] = TiledMapData.instance.getTileMapSize(this.tiledMap);
        let objGroup = this.tiledMap.getObjectGroup("monster");
        if (objGroup) {
            let objs = objGroup.getObjects();
            for (let i = 0; i < objs.length; i++) {
                //遍历出生点
                let obj = objs[i];
                let offset = obj.offset;
                let itemId = obj.name;
                let realPosx = offset.x - tiledMapWidth / 2;
                let realPosy = tiledMapHeight / 2 - offset.y;
                MonsterData.instance.addMonsterBornPoint(itemId, new Vec3(realPosx, realPosy, 0));
            }
            //初始化生成地图怪物
            EventListener.emit(GameEvent.INIT_MAP_MONSTER, this.tiledMap.getLayer("Place"));

        }
    }

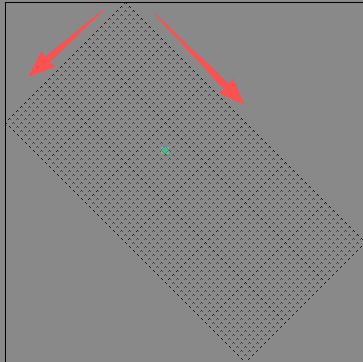

45度的地图

起始点：上方顶点
宽度：地图右边x轴
高度：地图左边y轴
这是一个60*30的地图

初始化45度的地图

/**
     * 初始化地图数据
     * 45度地图，右边为宽  左边为高   遍历格子是从右上角开始 到左下角结束，从右向左，从上到下
     * @param tiledMap
     */
    initFloorMapData(tiledMap: TiledMap) {
        this._tiledMap = tiledMap;
        let roadLayer = tiledMap.getLayer("road");
        // console.log(roadLayer.tiles);
        if (roadLayer) {
            this._mapWidth = tiledMap.getMapSize().width;
            this._mapHeight = tiledMap.getMapSize().height;
            this._tileWidth = tiledMap.getTileSize().width;
            this._tileHeight = tiledMap.getTileSize().height;
            //右上脚第一个点的坐标中心坐标 距离 地图中心左边的偏移
            //offsetX :顶点的x坐标 - 地图的宽度/2
            //offsetY :地图高度/2 - tileHeight/2
            let offsetX = this._mapHeight / 2 * this._tileWidth - (this._mapWidth * this._tileWidth + (this._mapHeight - this._mapWidth) * (this._tileWidth / 2)) / 2;
            let offsetY = (this._mapWidth * this._tileHeight + (this._mapHeight - this._mapWidth) * (this._tileHeight / 2)) / 2 - this._tileHeight / 2;
            //初始地图数据
            this._tileMapData = Array(this._mapHeight).fill(1).map(() => Array(this._mapWidth).fill(1));
            //通过解锁区域 设置数据
            let obj = tiledMap.getObjectGroup("obj");
            let ojbs = obj.getObjects();
            for (let i = 0; i < ojbs.length; i++) {
                //检测是否解锁
                let obj = ojbs[i];
                let name = obj.name;
                //设置区域数据
                let type = obj.properties.fType;
                this._areaOjbData.set(name, obj);
                //检测是否解锁
                if (this.checkUnlockArea((obj.properties.area as string))) {
                    console.log("解锁区域：" + name);
                    this.setUnlockAreaData(name);
                }
            }
        }
    }

通过格子获取在大地图里的位置

    /**
     * 通过格子获取在大地图里的位置
     * @param x
     * @param y
     */
    getMaxPosByGrid(x: number, y: number) {
        const mapWidth = this._mapWidth; //地图行数
        const mapHeight = this._mapHeight; // 地图列数
        const tileWidth = this._tileWidth; // 图块宽度
        const tileHeight = this._tileHeight; // 图块高度

        let orgirinX = mapHeight / 2 * this._tileWidth - (mapWidth * this._tileWidth + (mapHeight - mapWidth) * (this._tileWidth / 2)) / 2;;
        let orgirinY = (mapWidth * this._tileHeight + (mapHeight - mapWidth) * (this._tileHeight / 2)) / 2 - this._tileHeight / 2;
        const cx = orgirinX + (x - y) * (this._tileWidth / 2);
        const cy = orgirinY - (x + y) * (this._tileHeight / 2); // Y轴取反，向下延伸
        return { x: cx, y: cy };
    }

通过坐标获取大地图的行列

/**
     * 通过坐标获取大地图的行列
     * @param posX
     * @param posY
     * @returns
     */
    getMaxMapGridByPos(posX: number, posY: number) {
        const mapWidth = this._mapWidth; //地图行数
        const mapHeight = this._mapHeight; // 地图列数
        const tileWidth = this._tileWidth; // 图块宽度
        const tileHeight = this._tileHeight; // 图块高度
        let orgirinX = mapHeight / 2 * this._tileWidth - (mapWidth * this._tileWidth + (mapHeight - mapWidth) * (this._tileWidth / 2)) / 2;;
        let orgirinY = (mapWidth * this._tileHeight + (mapHeight - mapWidth) * (this._tileHeight / 2)) / 2 - this._tileHeight / 2;

        const x = ((posX - orgirinX) / (tileWidth / 2) + (orgirinY - posY) / (tileHeight / 2)) / 2;
        const y = x - (posX - orgirinX) / (tileWidth / 2);
        let x1 = Math.abs(Math.round(x)) == 0 ? 0 : Math.round(x);
        let y1 = Math.abs(Math.round(y)) == 0 ? 0 : Math.round(y);
        return { x: Math.round(x1), y: Math.round(y1) };
    }

绘制地图网格

    /**
   * 绘制地图网格
   */
    drawMapGrid(drawNode: Node, width: number, height: number) {
        let graphics = drawNode.getComponent(Graphics);
        if (!graphics) {
            graphics = drawNode.addComponent(Graphics);
        }
        const mapWidth = width; // 地图行数
        const mapHeight = height; // 地图列数
        const tileWidth = this._tileWidth; // 图块宽度
        const tileHeight = this._tileHeight; // 图块高度
        graphics.lineWidth = 5;
        graphics.strokeColor = Color.BLACK;
        // graphics.fillColor.fromHEX('#ff0000');

        // 遍历所有格子
        let orgirinX = mapHeight / 2 * tileWidth - (mapWidth * tileWidth + (mapHeight - mapWidth) * (tileWidth / 2)) / 2;
        let orgirinY = (mapWidth * tileHeight + (mapHeight - mapWidth) * (tileHeight / 2)) / 2 - tileHeight / 2;
        for (let i = 0; i < mapWidth; i++) {
            for (let j = 0; j < mapHeight; j++) {
                // 计算当前格子的中心坐标（调整Y轴方向）

                const cx = orgirinX + (i - j) * (tileWidth / 2);
                const cy = orgirinY - (i + j) * (tileHeight / 2); // Y轴取反，向下延伸
                // 计算菱形的四个顶点
                const rightX = cx + tileWidth / 2;
                const rightY = cy;
                const bottomX = cx;
                const bottomY = cy - tileHeight / 2;
                const leftX = cx - tileWidth / 2;
                const leftY = cy;
                const topX = cx;
                const topY = cy + tileHeight / 2;

                // 绘制菱形路径
                graphics.moveTo(rightX, rightY);
                graphics.lineTo(bottomX, bottomY);
                graphics.lineTo(leftX, leftY);
                graphics.lineTo(topX, topY);
                graphics.close(); // 闭合路径
            }
        }
        graphics.stroke(); // 绘制路径
    }

通过位置绘制网格

  /**
     * 通过位置绘制网格
     * @param drawNode
     * @param x
     * @param y
     */
    drawGridByGrid(drawNode: Node, x: number, y: number) {
        let graphics = drawNode.getComponent(Graphics);
        if (!graphics) {
            graphics = drawNode.addComponent(Graphics);
        }
        const mapWidth = this._mapWidth; // 地图行数
        const mapHeight = this._mapHeight; // 地图列数
        const tileWidth = this._tileWidth; // 图块宽度
        const tileHeight = this._tileHeight; // 图块高度
        graphics.lineWidth = 2;
        graphics.strokeColor = Color.BLACK;
        let orgirinX = mapHeight / 2 * tileWidth - (mapWidth * tileWidth + (mapHeight - mapWidth) * (tileWidth / 2)) / 2;
        let orgirinY = (mapWidth * tileHeight + (mapHeight - mapWidth) * (tileHeight / 2)) / 2 - tileHeight / 2;
        const cx = orgirinX + (x - y) * (tileWidth / 2);
        const cy = orgirinY - (x + y) * (tileHeight / 2); // Y轴取反，向下延伸
        // 计算菱形的四个顶点
        const rightX = cx + tileWidth / 2;
        const rightY = cy;
        const bottomX = cx;
        const bottomY = cy - tileHeight / 2;
        const leftX = cx - tileWidth / 2;
        const leftY = cy;
        const topX = cx;
        const topY = cy + tileHeight / 2;

        // 绘制菱形路径
        graphics.moveTo(rightX, rightY);
        graphics.lineTo(bottomX, bottomY);
        graphics.lineTo(leftX, leftY);
        graphics.lineTo(topX, topY);
        graphics.close(); // 闭合路径
        graphics.stroke(); // 绘制路径
    }

绘制地图网格区域

    /**
    * 绘制地图网格区域
    */
    drawMapGridArea(drawNode: Node, width: number, height: number) {
        let graphics = drawNode.getComponent(Graphics);
        if (!graphics) {
            graphics = drawNode.addComponent(Graphics);
        }
        const mapWidth = width; // 地图行数
        const mapHeight = height; // 地图列数
        const tileWidth = this._tileWidth; // 图块宽度
        const tileHeight = this._tileHeight; // 图块高度
        graphics.fillColor.fromHEX('#ff00007F');

        // 遍历所有格子
        let orgirinX = mapHeight / 2 * tileWidth - (mapWidth * tileWidth + (mapHeight - mapWidth) * (tileWidth / 2)) / 2;
        let orgirinY = (mapWidth * tileHeight + (mapHeight - mapWidth) * (tileHeight / 2)) / 2 - tileHeight / 2;
        for (let i = 0; i < mapWidth; i++) {
            for (let j = 0; j < mapHeight; j++) {
                // 计算当前格子的中心坐标（调整Y轴方向）

                const cx = orgirinX + (i - j) * (tileWidth / 2);
                const cy = orgirinY - (i + j) * (tileHeight / 2); // Y轴取反，向下延伸
                // 计算菱形的四个顶点
                const rightX = cx + tileWidth / 2;
                const rightY = cy;
                const bottomX = cx;
                const bottomY = cy - tileHeight / 2;
                const leftX = cx - tileWidth / 2;
                const leftY = cy;
                const topX = cx;
                const topY = cy + tileHeight / 2;

                // 绘制菱形路径
                graphics.moveTo(rightX, rightY);
                graphics.lineTo(bottomX, bottomY);
                graphics.lineTo(leftX, leftY);
                graphics.lineTo(topX, topY);
                graphics.close(); // 闭合路径
            }
        }
        graphics.fill(); // 绘制区域
    }

寻路的引入

import PF from 'pathfinding';

注意格子的对应
假如有一个地图为10*2的格子，width =10,height = 2

则grid = Array(height ).fill(1).map(() => Array(width ).fill(1))

1.地图xy轴空位对应grid数组索引空位
如果地图上的(0,1)为空位格子，则grid[1][0] = 0;

2.grid上的数组索引空位对应地图上xy轴的空位
如果grid[1,0]为空位0，则对应地图上(0,1) 为空位

当找grid的路径的时候则以grid为二维地图，找到的路径是以grid地图x轴和y轴得到的最表索引，二不是数组的索引

比如
var matrix = [
[0, 0, 0, 1, 0],
[1, 0, 0, 0, 1],
[0, 0, 1, 0, 0],
];
var grid = new PF.Grid(matrix);
找到从 (1, 2) 到 (4, 2) 的路径，（注意：起点和终点都应该可以行走）：

var path = finder.findPath(1, 2, 4, 2, grid);
path将是：
[ [ 1, 2 ], [ 1, 1 ], [ 2, 1 ], [ 3, 1 ], [ 3, 2 ], [ 4, 2 ] ]
